Precision Wire Cut Parts for Medical Product mold and Household Appliances Mould
| Name | Precision Wire Cut Parts for Medical Product mold and Household Appliances mould |
| Material | SKD11 |
| Hardness | HRC 60-62 |
| Specification | Non-standard/Custom |
| Custom | OEM/ODM |
| Surface treatment | None |
| surface finish | Ra0.15-Ra0.3um |
| Wire Diameter | 0.03mm-0.2mm |
| Tolerance | ±0.002mm |
| Mold Type | Stamping mold |
| Wire Diameter | 0.03mm-0.2mm |
| MOQ | 1PCS |
| CNC Machining or Not | CNC Machining |
| Sample | Available |
| Place of Origin | Jiangsu BOS China |
| Supply Ability | 20000 Pieces Per Month |
| Material Capabilities | 1.2343,1.2083,1.2842,C45(K1045),C2100,C46(K1046),C20,SKD11,SKD61,SKH51,1.2379,k390,ELMAX,SKS3,S45C,S290,HPM31,SLD,YXM1,HAP40,YXR33,HPM38,D2.stavax,S-7,NA20,RD50,RD30,WF30,KG7,WF15,CF-H40S,CF-H25S,SUJ2,etc. |
| Packaging&Delivery Packaging Details | PP bag,carton ,box or according to customer’s requirements |
| Port | GUANGZHOU |
| Lead Time :Quantity(pieces)1-5000 | 3-7days |
| Lead Time :>50000 | TO be negotiated |
| Shipping | Shipped by a convenient and cost-effective way |
Process: on-demand blanking → Rough Grinding→ finish Grinding→ WEDM→EDM→ Chamfer and edge treatment→ Cleaning and Packaging
Product parameters
Perpendicularity
0.002MM
Parallelism
0.001MM
Roughness
EDM Roughness: Ra0.4-Ra0.8um
Roughness
Grinding Roughness:
Ra0.15-Ra0.2um
Roughness
Wire-Cut Roughness:
Ra0.15-Ra0.3um
Product Overview

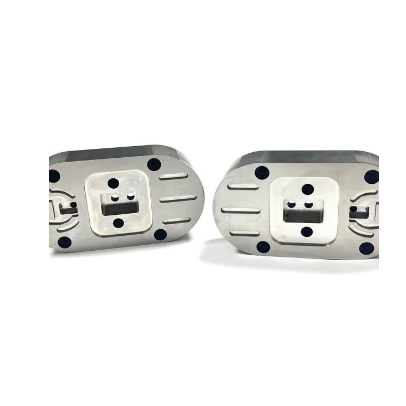

This product is a precision wire-cut part exported to malaysia. It features a stable machining tolerance within ±0.002 mm, with geometric tolerances (perpendicularity of 0.002 mm and parallelism of 0.001 mm) and a surface roughness ranging from Ra 0.2 to Ra 0.3um. The minimum internal radius (R) of this workpiece is R0.1, which is machined using a wire with a diameter of φ0.1 mm.
Why Choose Us
- Over 15 Years of Expertise – Trusted by clients across Japan, Germany, Singapore, Malaysia, and Thailand.
- Direct Factory Advantage – Competitive pricing without unnecessary markups.
- Complimentary Support – Free engineering advice and samples before mass production.
- Guaranteed Precision – Every part is inspected with CMM reports for accuracy.
- On-Time Delivery – Flexible lead times from 7 to 20 days to meet your schedule.
- High Precision– ±0.002mm tolerance
- Lead Time- 7-20 days
- QC Assurance -100% inspection before delivery
A brief introduction of Bos
Jiangsu Bos Precision Moulds specializes in precision molds and components, and has been upholding ISO9001-certified quality standards since 1999. We manufacture WEDM parts (wire-cut electrical discharge machining parts), which are widely used in connector molds, motor core molds, terminal molds, and automation equipment.
With over 15 years of industry experience and solid technical expertise, we provide reliable quality and customized solutions for global customers in Japan, Germany, Singapore, Malaysia, Thailand, and other regions. We are now seeking to explore more global markets!
Our workshop
Our Quality Control Department
Looking for a precision wire-cut parts manufacturer in China?
We provide custom wire EDM solutions with high accuracy and
reliable lead times for global B2B buyers.
Contact us
today to get a free design review, quotation, and sample for
your next project.
