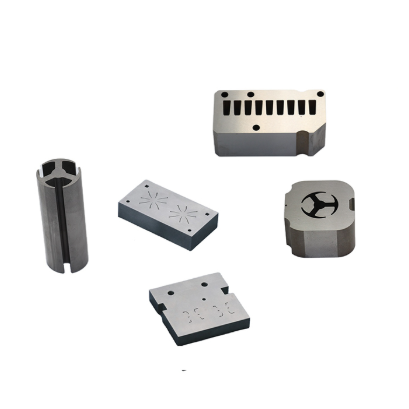

Custom Precision Wire-Cut Components Are Used in IC Lead Frame Stamping Mold and Stator and Rotor Molds
| Name | Custom Precision Wire-Cut components are used in IC Lead Frame Stamping Mold and stator and rotor molds. |
| Material | CF-H40S |
| Hardness | 90.3HRA |
| Specification | Non-standard/Custom |
| Custom | OEM/ODM |
| Surface treatment | None |
| surface finish | Ra0.15-Ra0.3um |
| Tolerance | ±0.002mm |
| Mold Type | Metal Stamping Molds |
| Wire Diameter | 0.03mm-0.2mm |
| MOQ | 1PCS |
| CNC Machining or Not | CNC Machining |
| Sample | Available |
| Place of Origin | Jiangsu BOS China |
| Supply Ability | 20000 Pieces Per Month |
| Material Capabilities | 1.2343,1.2083,1.2842,C45(K1045),C2100,C46(K1046),C20,SKD11,SKD61,SKH51,1.2379,k390,ELMAX,SKS3,S45C,S290,HPM31,SLD,YXM1,HAP40,YXR33,HPM38,D2.stavax,S-7,NA20,RD50,RD30,WF30,KG7,WF15,CF-H40S,CF-H25S,SUJ2,etc. |
| Packaging&Delivery Packaging Details | PP bag,carton ,box or according to customer’s requirements |
| Port | GUANGZHOU |
| Lead Time :Quantity(pieces)1-5000 | 3-7days |
| Lead Time :>50000 | TO be negotiated |
| Shipping | Shipped by a convenient and cost-effective way |
Product parameters
Perpendicularity
0.002MM
Parallelism
0.001MM
Roughness
EDM Roughness: Ra0.4-Ra0.8um
Roughness
Grinding Roughness:
Ra0.15-Ra0.2um
Roughness
Wire-Cut Roughness:
Ra0.15-Ra0.3um
Why Choose Us
- Over 15 Years of Manufacturing Experience
- Free Design Service
- Free Sample (Available)
- Factory-Direct Pricing
- High Precision: Tolerance ±0.002 mm
- Quick Shipment
- 100% Inspection Before Delivery
Our precision tungsten carbide mold parts are crafted from high-quality tungsten carbide, delivering exceptional hardness (HRA 89–94), superior wear resistance, and long-lasting performance under demanding conditions.
Our Precision Wire-Cut Parts (WEDM)are widely used in Mold & Die Manufacturing Industry Precision Machinery Manufacturing Industry Electronics & Semiconductor Industry Aerospace & Defense Industry Automotive Industry (High-end Precision Components Sector) Medical Device Industry Other Segmented Fields / Other Niche Areas.
We can provide custom designs based on your drawings, with fast delivery (7-20 days) and sample service available. For manufacturers pursuing efficiency, precision, and reliability, our precision wire-cut parts are a trustworthy choice.
A brief introduction of Bos
Jiangsu BOS Precision Technology Co., Ltd. specializes in precision molds and components. Since 1999, we have provided ISO 9001-certified products that meet international quality standards.
Our precision Wire Cut Parts find applications across multiple sectors. For instance, they are widely used in:
- Mold & Die Manufacturing Industry
- Precision Machinery Manufacturing Industry
- Electronics & Semiconductor Industry
- Aerospace & Defense Industry
- Automotive Industry (High-end Precision Components Sector)
- Medical Device Industry
- Other Segmented Fields / Other Niche Area
With over 15 years of industry experience and solid technical expertise, we offer reliable products and customized solutions to global customers (e.g., Japan, Germany, Singapore, the US). We are now seeking to expand into more international markets.
Our WEDM Workshop
Our Inspection Department
The FAQ for your reference
1.How long does it take to deliver the mold?
The delivery
time depends on the complexity of the mold, typically
ranging from 15 days to several months.
2.How long will the shipping take?
If shipped by sea, the
transportation time may exceed one month. If you need the
mold urgently, we recommend choosing air transport to
shorten delivery time.
3.Can we sign an NDA before uploading my design?
Of
course, we take your design confidentiality very seriously.
4.What should I pay attention to when designing a
mold?
Pay attention to factors such as product structure
and functionality compatibility, accuracy and tolerance
control, material selection and heat treatment, gating and
cooling system design, maintainability and cost control, as
well as production efficiency and automation compatibility.
Contact Bos now to get a customized solution tailored to your production needs and experience the high-quality services of our precision mold and parts manufacturing!
